Disulfide-Bond Cyclization of Peptides and ICK Structures: Advanced Peptide Disulfide Cyclization Techniques

1. Principles and Introduction

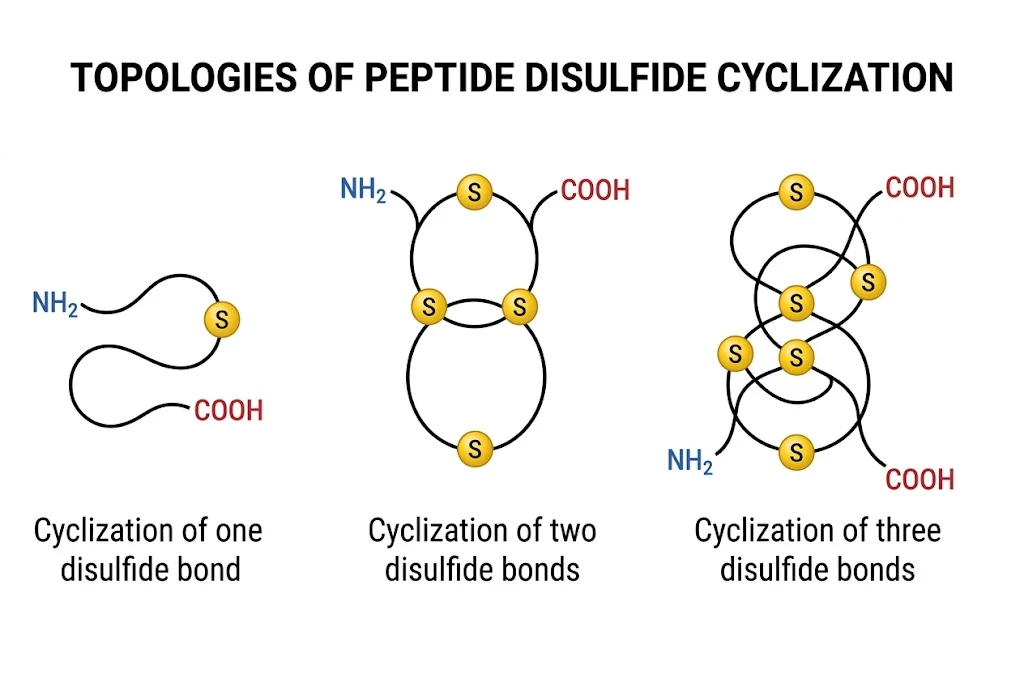

Disulfide cyclization in peptide chemistry involves the oxidation of side-chain sulfhydryl groups between two cysteine (Cys) residues. This reaction transforms a linear peptide sequence into a stable, closed-loop structure containing a S–S linkage, which serves as a foundational chemistry in custom cyclic peptide synthesis. Among these macrocyclic architectures, inhibitor cystine knot (ICK) peptides represent an incredibly sophisticated structural motif characterized by three interconnected disulfide bonds. In a typical ICK framework, two disulfide bonds and their intervening backbone segments form a closed ring, while the third disulfide bond penetrates through the center of this ring to establish a tightly interlocked, knotted topology. The ICK family encompasses a vast array of naturally occurring bioactive peptides and their cyclotide homologues. Due to their structurally diverse properties, these peptides serve as robust scaffolds in modern drug discovery and biological pesticide design.

2. Stability Mechanisms of the ICK Architecture

From a structural perspective, cyclic peptides such as the well-studied Kalata B1 rely on the three interlocked disulfide bonds of the cystine knot to pack their internal amino acid residues into a highly compact hydrophobic core. This dense, knotted arrangement provides the peptide with exceptional physical and chemical stability, protecting the overall molecular shape against heat, extreme pH environments, and enzymatic degradation.

For example, Hv1a-an ICK peptide isolated from spider venom-remains fully intact and biologically active even when exposed to high temperatures up to 75°C, strongly acidic environments down to pH 1, or continuous incubation with aggressive proteolytic enzymes. However, if these disulfide bonds are chemically reduced, this extraordinary stability is immediately lost. Consequently, integrating an ICK scaffold represents an effective methodology for improving the thermal, chemical, and enzymatic resistance of a peptide, which is highly advantageous for developing oral therapeutic agents.

3. Overcoming Technical Challenges: Regioselective Synthesis

When dealing with a complex multiple disulfide bonds peptide-such as 3-disulfide ICK frameworks, conotoxins, or knottin structures-relying on traditional random air folding often leads to severe disulfide mismatching and peptide aggregation. To prevent these manufacturing failures and ensure high purification yields, executing precise regioselective disulfide formation is mandatory to ensure the correct connectivity in these high-value disulfide bridged peptides.

Common orthogonal combinations include:

Trityl (Trt): Readily cleaved under mild acidic conditions, typically during the standard trifluoroacetic acid (TFA) resin cleavage step.

Acetamidomethyl (Acm): Highly stable against strong acids, requiring selective removal and simultaneous oxidation using iodine (I2) in a subsequent purification phase.

Tert-Butyl (tBu): Stable to standard TFA cleavage and mild iodine, selectively removed and oxidized using strong acids (e.g., TfOH) or heavy-metal oxidants like Thallium(III) trifluoroacetate [Tl(Tfa)3] without premature cleavage of remaining orthogonal sets.

4. Strategic Process Selection: On-Resin vs. Solution-Phase Disulfide Formation

In custom peptide engineering, selecting the optimal strategy for disulfide bond formation is strictly determined by sequence length, folding complexity, and side-chain vulnerabilities.

On-Resin Cyclization Considerations

On-resin disulfide cyclization is typically considered an advantageous routing when the sequence aligns well with the following characteristics:

Hydrophobic Short Peptides: Helps manage solubility and handling for sequences that show a strong tendency to aggregate in traditional fully aqueous solution buffers.

Low-Loading Supports: Utilizing a lower resin density helps provide spatial separation between peptide chains, which generally reduces the formation of intermolecular dimers.

Single Disulfide Loop: Best suited for simpler architectures to avoid potential steric hindrance or mass transfer limitations within the resin pores during intricate folding steps.

Generally, for highly complex networks such as the 3-disulfide interlocked topologies found in ICK knots, migrating the sequence to optimized solution-phase folding protocols is widely recommended to ensure proper connectivity and real-time monitoring.

Solution-Phase Folding Approaches

In practical peptide synthesis, the vast majority of cyclization reactions are carried out in the solution phase. This is especially true for intricate sequences with multiple disulfide bonds, where a controlled liquid environment is essential for managing the folding pathways.

Rather than a single static protocol, several distinct solution-phase methods are commonly utilized depending on the specific properties of the sequence, each presenting its own technical characteristics and limitations:

Air / Oxygen Oxidation

The crude linear peptide is dissolved in a weakly alkaline aqueous buffer (typically pH 7.5–8.5), allowing ambient oxygen to gently drive the disulfide bond formation over a period of 24 to 72 hours.

Limitations: While it is highly cost-effective and straightforward, the reaction kinetic is relatively slow. Additionally, if the peptide concentration is not kept low enough, there is a technical risk of widespread intermolecular dimerization.

Iodine (I2) Mediated Oxidation

Primarily utilized as a standard approach for the simultaneous deprotection and oxidation of Acetamidomethyl (Acm) protected cysteine pairs, making it a cornerstone for directing multi-disulfide regioselective synthesis.

Limitations: It is highly efficient and fast, but free iodine carries a risk of side-chain damage. If the sequence contains sensitive residues like Tyrosine (Tyr), Tryptophan (Trp), or Methionine (Met), extended exposure can lead to side reactions such as iodination or unwanted oxidation artifacts, requiring rapid quenching immediately upon completion.

DMSO Assisted Oxidation

Dimethyl sulfoxide (DMSO) serves as both a mild oxidant and a co-solvent, capable of facilitating cyclization under neutral or even slightly acidic conditions (pH 3.0–7.0) much faster than standard air oxidation.

Limitations: It is highly beneficial for sequences that suffer from poor solubility or precipitation at high pH. However, tracking the folding kinetics via mass spectrometry can sometimes be less straightforward, and care must be taken with native, unprotected Methionine residues to avoid unwanted sulfoxide formation.

5. Applications in Biopharmaceuticals and Agriculture

Disulfide-rich ICK peptides offer promising applications in both clinical medicine and modern sustainable agriculture. In therapeutic research, several ICK peptides derived from legumes-such as members of the PA1b family, alongside soybean insulin-like variants aglycin, vglycin, and iglycin-have demonstrated significant anti-diabetic properties. When administered orally, these peptides help regulate blood glucose levels by improving insulin signaling pathways and protecting pancreatic $\beta$-cell functions.

In agricultural science, certain ICK peptides serve as excellent natural candidates for developing eco-friendly biopesticides. For instance, PA1b targets and binds specifically to the V-ATPase in the insect gut. When ingested by pests, it exhibits potent insecticidal activity, showing high mortality rates against destructive species such as grain weevils and mosquito larvae, while remaining harmless to non-target organisms. Furthermore, various cyclotides and ICK frameworks continue to show broad-spectrum antimicrobial, antiviral, and antitumor activities in ongoing laboratory models.

6. Representative ICK and Cyclic Peptides in Current Research

PA1b (Pea Albumin 1 Subunit b): Isolated from pea seeds, this peptide consists of 37 amino acids and 3 disulfide bonds forming a classic ICK framework. It is currently studied as an orally active insecticidal agent.

Aglycin: A 37-amino acid peptide containing 6 cysteine residues (3 disulfide bonds), frequently referred to as "soybean insulin." It mimics insulin activity, resists degradation by gastric enzymes, and effectively lowers blood glucose in oral animal trials.

Vglycin: A structural homologue extracted alongside aglycin from leguminous sources. It shares similar insulin-mimicking properties, aiding in the restoration of insulin receptor functions and improving glucose tolerance.

Iglycin & Dglycin: Additional variants belonging to the leguminous PA1b family. These peptides exhibit comparable bioactivity in metabolic regulation and protective cellular assays.

1α-Astratide aM1: A cysteine-rich peptide isolated from the traditional herb Astragalus membranaceus, displaying close sequence homology to PA1b. It has drawn research interest for its dual insecticidal potential and its role in modulating insulin secretion and glucose homeostasis.

Contact Us at sales@biorunstar.com to discuss your custom disulfide peptide synthesis project. Our laboratory provides premium capabilities in complex ICK peptide synthesis and technical execution of disulfide bond cyclic peptide structures.

Refer to our standard disulfide cyclization peptide cases to evaluate our track record in specialized cystine knot peptide synthesis at: https://www.biorunstar.com/projects/disulfide-cyclization-peptide.html

References

Craik, D. J., Daly, N. L., Bond, T., & Waine, C. (1999). Plant cyclotides: A unique family of cyclic proteins featuring a cystine knot motif. Journal of Molecular Biology, 294(5), 1327-1336.

Pallaghy, P. K., Nielsen, K. J., Craik, D. J., & Norton, R. S. (1994). A common structural motif incorporating a cystine knot and a beta-sheet in activation-gated ion-channel blockers and toxin and insecticidal proteins. Protein Science, 3(10), 1833-1839.

Louis, S., etc. (2007). Insecticidal activity of pea albumin 1 subunit b (PA1b) and insect V-ATPase inhibition. Journal of Biological Chemistry, 282(36), 26051-26057.

Lu, X., etc. (2012). Soybean-derived peptide aglycin regulates glucose homeostasis in diabetic mice via oral administration. Journal of Nutritional Biochemistry, 23(12), 1645-1652.

Gelly, M., etc. (2004). Solution structure of the insecticidal protein PA1b from pea seeds. Oecologia/Protein Science, 13(5), 1163-1172.

Eyrisch, S., & Helms, V. (2007). Transient pockets on the surface of ICK knots as potential drug targets. Journal of Medicinal Chemistry, 50(15), 3457-3464.

Norton, R. S., & Pallaghy, P. K. (1998). The cystine knot structure of ion channel toxins and related proteins. Toxicon, 36(11), 1573-1583.

Smith, J. J., etc. (2005). Regioselective synthesis and folding of complex disulfide-rich peptides. Analytical Biochemistry, 344(2), 221-231.

Bulaj, G. (2005). Formation of disulfide bonds in proteins and peptides: From chemistry to biology. Biotechnology Advances, 23(1), 87-92.

Tam, J. P., & Lu, Y. A. (1998). Synthesis of large cyclic peptides using orthogonal coupling strategies. Tetrahedron Letters, 39(23), 3955-3958.

Chan, W. C., & White, P. D. (2000). Fmoc Solid Phase Peptide Synthesis: A Practical Approach. Oxford University Press. (Chapter 5: On-resin peptide cyclization protocols).

Kates, S. A., Solé, N. A., Albericio, F., & Barany, G. (1998). On-resin peptide cyclization. Methods in Enzymology, 289, 241-250.

Craik, D. J., & Conibear, A. C. (2011). The chemistry and biophysics of cyclotides. Journal of Biological Chemistry, 286(13), 10964-10971.
